small plastic check valve from China manufacturer - Ningbo Eco Water Filter Co., Limited

Payment Terms:	T/T,L/C,WU,Paypal
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: CV4040Q

Production Capacity: 100000pcs/month

Delivery Date: 10 days

Standard or Nonstandard: Standard

Structure: Check

Temperature of Media: Normal Temperature

Brand Name: ECO

Plastic Material: food grade POM

Certificates: FDA & NSF approval for plas...

Means of Transport: Ocean,Land,Air

Packing: exportable carton

Power: Hydraulic

Pressure: Medium Pressure

Material: Others

Media: Water

Size: 1/4" x 1/4"

Technics: injection molding

elbow union check valve with 1/4" quick connection.
size:1/4" x 1/4".
made of FDA & NSF certified plastic POM.
used in RO water filtration system.

Product Specification:

type	elbow union
inlet/outlet port size	1/4"tube x 1/4" tube
max inlet working pressure	1.2MPa
min inlet water pressure	≧0.015MPa
reverse shut off pressure	≤0.015MPa
plastic material	food grade POM with FDA & NSF approval

Working Pressure & Temperauture of Plastic Check Valve:
Temperature Pressure
-20ºC 10bar
1ºC 10bar
20ºC 10bar
65ºC 7bar
New Technology - Using advanced ultrasonic welding technology to ensure plastic check valves more reliable to leakproof performance.

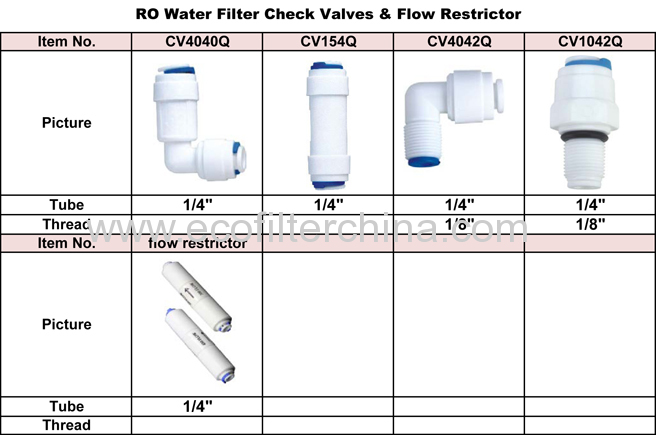

Port Size for Our Plastic Check valves and Flow Restrictors:
Part No. Tube Thread
CV4040Q 1/4" * 1/4"
CV154Q 1/4" * 1/4"
CV4042Q 1/4" 1/8"
CV1042 1/4" 1/8"
R1414Q 1/4" * 1/4"
Usage:
Used in RO water filtration system.
Our plastic check valves are suitable for contact with foodstuffs & drinking water.
Other Models of Plastic Check Valves and Plastic Valves for Water System:
Company Profile:
Professional manufacturer with complete variety of plastic quick connectors and valves used in reverse osmosis water filtration system and any other water systems.Our plastic material POM is imported from U.S.A with FDA and NSF certificates.
1. Water filter quick connector automatic assembling machine:

2. Water filter quick connector production line:
