low pressure solenoid valve from China manufacturer - Ningbo Eco Water Filter Co., Limited

Payment Terms:	T/T,L/C,WU,Paypal
Place of Origin:	Zhejiang, China (Mainland)

Product Detail

Model No.: WV-Q2

Production Capacity: 100000pcs/month

Delivery Date: 10 days on receipt of the o...

Standard or Nonstandard: Standard

Structure: Control

Temperature of Media: Normal Temperature

Brand Name: ECO

Fluid Media: water

Voltage: DC12V/24/29V/36V/48V AC110...

Certificate: CE approval

Means of Transport: Ocean,Land,Air

Packing: 37 X 32 X 20cm/200pcs, G.W:...

Power: Solenoid

Pressure: Low Pressure

Material: Brass

Media: Water

Port Size: 1/4" x 1/4"

Operating Pressure: 0-0.8MPa

Valve Body Material: polypropylene

feed water solenoid valve with 1/4" quick connection port.
feed water solenoid valve for RO water system.
CE certified feed water solenoid valve.

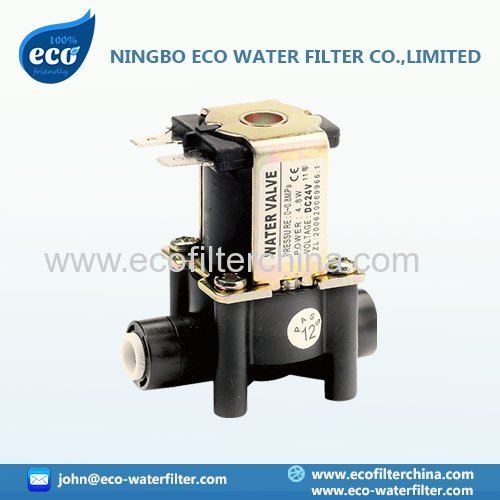

Product Name: plastic feed water solenoid valve for RO system with 1/4" quick connection inlet/outlet port.
Product Model No. WV-Q2.

Product Specification:

plastic material of the valve body	polypropylene
fluid media	water
working pressure	0 ~ 0.8MPa(0 ~ 116psi)
max water pressure	＞2.5MPa(362psi)
inlet/outlet port	1/4" quick connection
voltage	DC12V, DC24V, DC29V, DC36V, DC48V, AC110V, AC220V
input power	4.8W(DC24V/190mA)
certificate	CE approval
packing	37 X 32 X 20cm/200pcs, G.W:21kgs

Improvement of Quick Connection:
More leakproof and convenient to pushing in!

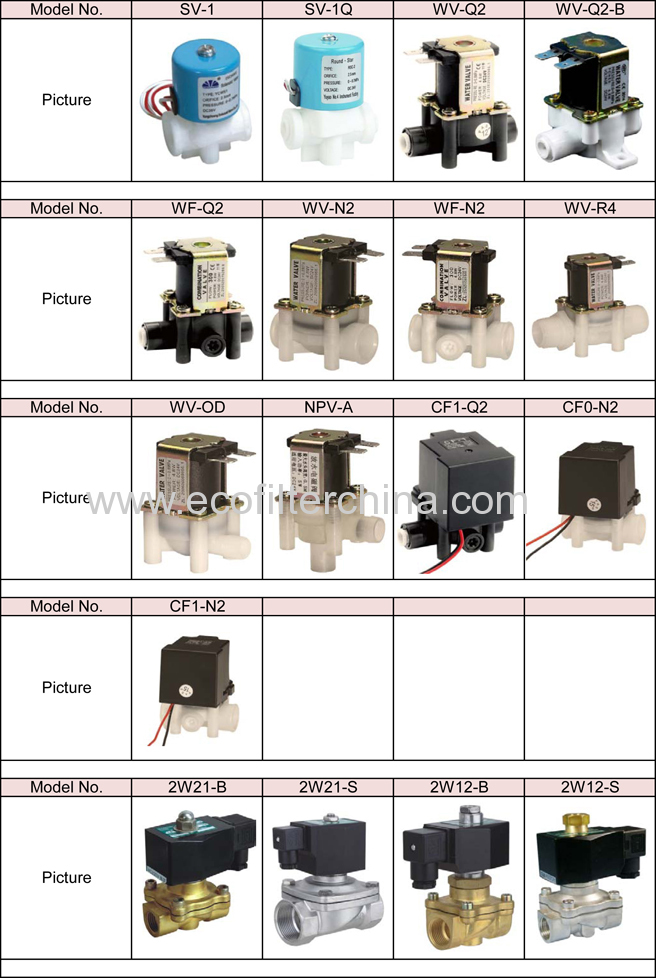

Other Models of Solenoid Valves
Company Profile:
Manufacturing all kinds of fluid solenoid valves, angle seat valves, electric valves with ISO9001:2008 certification. Some of our products are certified with TUV CE approval.
Certificates:
